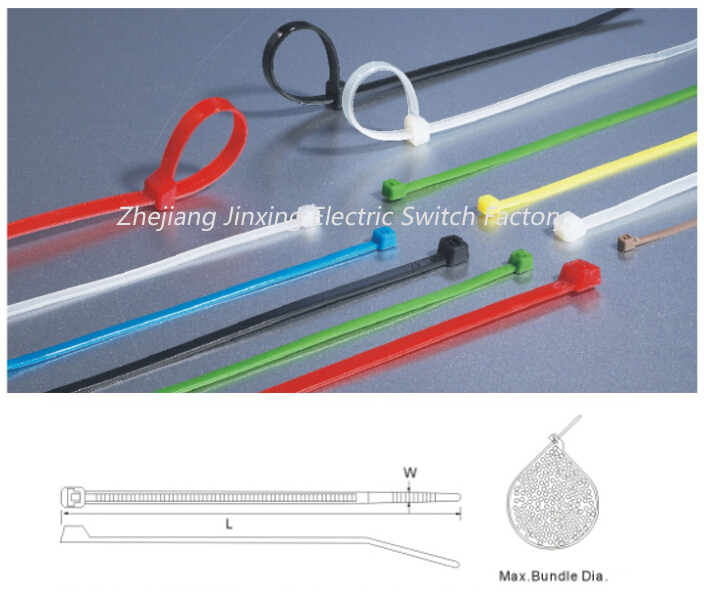

Self-Locking Nylon Cable Ties




材质:采用UL认可之尼龙66材料制成,防火等级94V-2,耐酸、耐蚀、绝缘性良好,不易老化、承受力强。
操作温度:-35℃~85℃
颜色:标准颜色为本色(白色),另有抗紫外线之黑色,特殊颜色欢迎订做。

Material: Nylon 66,94V-2certificated by UL-Heat-resisting,Acid&erosioncontrol,Insulate well and not apt to age.
Operating temperature: -35 C ~85 C
Color:Natural(or white,standard color),Uvblack and other colors are availabe as requested


Model
编号ITEM.No. L(长) W(宽)

捆扎范围

Bundle Diamater  E  (mm)

拉力

 Min.loop Tensile Strength

INCH MM LBS KGS
ZJ-3*60 2.4" 60 1.9 2-11 14 6.5
ZJ-3*80 3.2" 80 2-18
ZJ-3*100 4.0" 100 2-22
ZJ-3*150 6.0" 150 2-35
ZJ-3*200 8.0" 200 2-50
ZJ-3*80 3.2" 80 2.0  2-18
ZJ-3*100 4.0" 100 2-22
ZJ-3*120 4.7" 120 2-30
ZJ-3*120 4.7" 120 2.2  2-30 18  8
ZJ-3*150 6.0" 150 2-35
ZJ-3*200 8.0" 200 3-50
ZJ-3*180 7.1" 180 2.3 2-42
ZJ-3*80 3.2" 80 2.5  2-18
ZJ-3*100 4.0" 100 2-22
ZJ-3*120 4.7" 120 2-30
ZJ-3*150 6.0" 150 2-35
ZJ-3*200 8.0" 200 3-50
ZJ-4*150 6.0" 150 2.6 2-35
ZJ-4*200 8.0" 200 3-50
ZJ-4*180 7.1" 180 2.8 3-42 27 12
ZJ-4*200 8.0" 200 3-50
ZJ-4*250 10" 250 3-65
ZJ-4*300 12" 300 3-80
ZJ-4*150 6.0" 150 3.0  3-35 33 15
ZJ-4*200 8.0" 200 3.2  3-50 40 18
ZJ-4*250 10" 250 3-65
ZJ-4*300 12" 300 3-80
ZJ-4*120 4.7" 120 3.3 3-30
ZJ-4*180 7.1" 180 3-42
ZJ-5*250 10" 250 3.5 3-65
ZJ-5*300 12" 300 3-65
ZJ-4*140 5.5" 140 3.6 3-33
ZJ-4*150 6.0" 150 3-35
ZJ-4*180 7.1" 180 3-42
ZJ-5*200 8.0" 200 3-50
ZJ-5*250 10" 250 3-65
ZJ-5*300 12" 300 3-80
ZJ-5*350 14" 350 3-90
ZJ-5*370 14.6" 370 3-98
ZJ-5*400 16" 400 3-105
ZJ-5*450 17.7" 450 3-130
ZJ-5*500 19.7" 500 3-150
ZJ-5*200 8.0" 200 3.8 3-50
ZJ-5*250 10" 250 4.0  3-65
ZJ-5*300 12" 300 3-80
ZJ-5*380 15" 380 4.6 3-102 50  22
ZJ-5*200 8.0" 200 4.8 3-50
ZJ-5*250 10" 250 3-65
ZJ-5*300 12" 300 3-80
ZJ-5*350 14" 350 3-90
ZJ-5*370 14.6" 370 3-98
ZJ-5*400 16" 400 3-105
ZJ-5*450 17.7" 450 3-130
ZJ-5*500 19.7" 500 3-150
ZJ-8*250 10" 250 5.0  3-65
ZJ-8*300 12" 300 3-80
ZJ-8*400 16" 400 3-105
ZJ-8*200 8.0" 200 5.2 3-50 65 30
ZJ-8*350 14" 350 3-90
ZJ-8*450 17.7" 450 5.5 3-130
ZJ-8*500 20" 500 3-150
ZJ-8*300 12" 300 5.8 3-80
ZJ-8*400 16" 400 3-105
ZJ-8*400 16" 400 3-105
ZJ-8*200 8.0" 200 6.0  3-50
ZJ-8*250 10" 250 3-65
ZJ-8*250 10" 250 6.8 3-65 77 35
ZJ-8*200 8.0" 200 7.2 3-50 120 55
ZJ-8*250 10" 250 3-65
ZJ-8*300 12" 300 3-80
ZJ-8*350 14" 350 3-90
ZJ-8*400 16" 400 3-105
ZJ-8*500 20" 500 3-150
ZJ-10*650 25.6" 650 8-190
ZJ-8*300 12" 300 7.6 4-80
ZJ-8*370 14.6" 370 4-98
ZJ-8*400 16" 400 4-105
ZJ-8*350 14" 350 7.8 4-90
ZJ-8*500 20" 500 4-150
ZJ-9*450 17.7" 450 8.0  4-118 175 79.4
ZJ-10*500 20" 500 8.8  8-150
ZJ-10*600 23.6" 600 8-170
ZJ-10*650 25.6" 650 8-190
ZJ-10*700 27.6" 700 10-205
ZJ-10*800 31.5" 800 10-230
ZJ-10*900 35.5" 900 10-265
ZJ-10*1000 40" 1000 10-300
