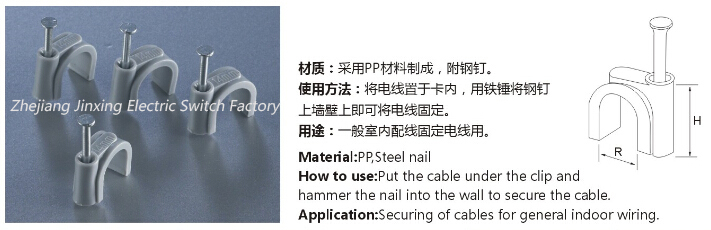

Circle Cable Clips
Model


材质:采用PP材料制成,附钢钉。

使用办法:将电线置于卡内,用铁锤将钢钉上墙壁上即可将电线固定。

用途:一般室内配线固定电线用。

Material:PP,Stell nail.

How to use:Put the cable under the clip and hammer the nail into the wall to secure the cable.

Application:Securing of cables for general indooor wiring.



编号 ITEM.No. 高(H)(mm) 圆径Circle Path(R)(mm) 钢钉(Nail)(mm) 颜色 Color
ZJR-4MM 5.3  4.0  1.7*14

WHITE

GREY

BLACK

BROWN

 DARK GREY

ZJR-5MM 6.0  5.0  1.7*14
ZJR-6MM 8.0  6.0  1.7*15
ZJR-7MM 8.7  7.0  1.7*17
ZJR-8MM 9.5  8.0  1.8*18
ZJR-9MM 11.0  9.0  1.9*22
ZJR-10MM 12.0  10.0  1.9*22
ZJR-12MM 13.5  12.0  2.0*25
ZJR-14MM 16.5  14.0  2.2*31
ZJR-16MM 18.0  16.0  2.2*31
ZJR-17MM 20.0  17.0  2.6*38
ZJR-18MM 20.5  18.0  2.2*31
ZJR-20MM 22.5  20.0  2.5*39
ZJR-22MM 23.5  22.0  2.5*39
ZJR-25MM 26.5  25.0  2.5*43
ZJR-30MM 32.5  30.0  3.5*55
ZJR-32MM 34.5  32.0  3.5*55
ZJR-35MM 38.0  35.0  3.5*60
ZJR-40MM 43.8  40.0  3.3*65
