Flat Cable Clips
Model

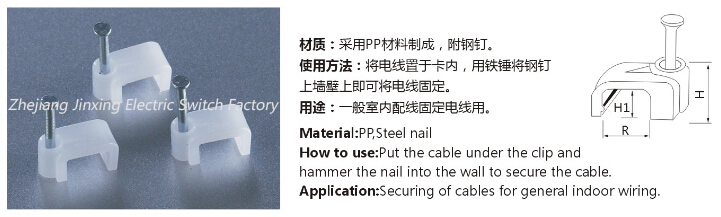

材质:采用PE材料制成,附钢钉。

使用办法:将电线置于卡内,用铁锤将钢钉上墙壁上即可将电线固定。

用途:一般室内配线固定电线用。

Material:PE,Stell nail.

How to use:Put the cable under the clip and hammer the nail into the wall to secure the cable.

Application:Securing of cables for general indooor wiring.

编号 ITEM.No. 高(H)(mm) H1(mm) R(mm) 钢钉(Nail)(mm) 颜色 Color
ZJF-4MM 5.5  3.5  4 1.7*14 WHITE      GREY         BLACK        BROWN     DARK GREY
ZJF-5MM 5.5  3.5  5 1.7*14
ZJF-6MM 6.0  4.1  6 1.7*14
ZJF-7MM 6.5  4.7  7 1.7*15
ZJF-8MM 7.0  5.0  8 1.7*15
ZJF-9MM 8.0  5.4  9 1.7*15
ZJF-10MM 8.0  5.6  10 1.8*18
ZJF-12MM 8.5  5.6  12 2.0*18
ZJF-14MM 10.0  7.0  14 2.0*18
ZJF-18MM 12.5  8.5  18 2.6*27
ZJF-19MM 14.0  10.5  19 2.6*27
