Close End Wire/Commector
Model

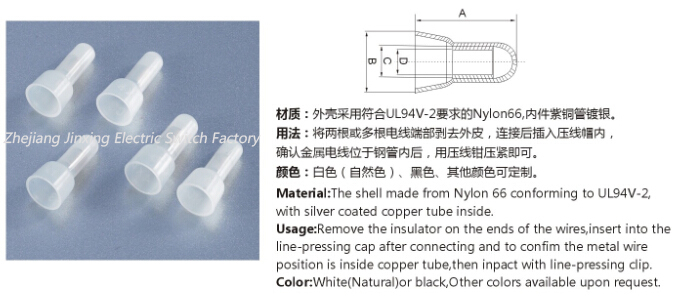

材质:外壳采用符合UL94V-2要求的Nylon66,内件紫铜管镀银。

用法:将两根或多根电线端部剥去外皮,连接后插入压线帽内,确认金属电线位于钢管内后,用压线钳压紧即可。

颜色:白色(自然色)、黑色、其他颜色可定制。

Material:The shell made from Nylon 66 conforming to UL94V-2,with silver coated copper tube inside.

Usage:Remove the insulator on the ends of the wires,insert into the line-pressing cap after connecting and to confirm the metal wire position is inside copper tube,then impact with line-pressing clip.

Color:White(Natural)or black,Other colors available upon request.



编号 ITEM.No. 高(A)(mm) 宽(B)(mm) 螺纹内径 Thread diameter inside C(mm) 铜管内径 Brass tube diameter D(mm) 适用电线范围    Suitable wires
φ3 18.0  9.0  3.6  2.8  1.25 22-16
φ4 21.0  9.5  3.9  3.0  2 16-14
φ5 22.5  10.5  4.8  4.0  5.5 12-10
φ6 24.0  12.0  5.6  4.8  8 8
φ8 25.5  14.0  7.5  6.0  13 6
φ10 29.5  15.5  9.3  7.8  16 4
