Nylon Cable Glands
Model

材质:PP材料或尼龙6/6

特点:1、夹紧圈经特殊设计,拉力强,对电机不造成损伤;

      2、不须将固定并没有解体,电缆可直接穿入上紧即可,省时方便。

用途:一般机械控制箱、配电盘、机器、电器等电缆固定用。

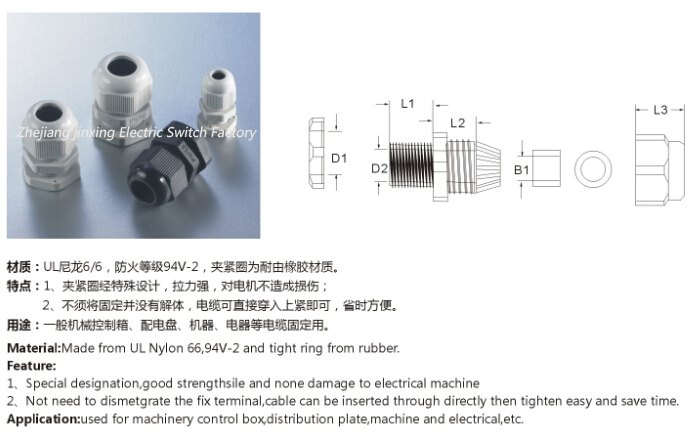

Material:PP or UL Nylon 66,94V-2 and tight ring from rubber.

Feature:

       1Special designation,good strengthsile and none damage to electrical machine.

       2Not need to dismetgrate the fix terminal,cable can be inserted through directly then tighten easy and save time.

Application:Used for machinery control box,distribution plate,machine and electrical,etc.

型号Type

编号ITEM.No.

D1

D2

L1

L2

L3

B1

范围Cable range

M12×1.5

PG-07

10.9

8.1

10.4

14.5

10.5

6.4

3.5-6

M16×1.5

PG-09

15.3

12.2

9.9

15.8

17.2

8.6

4-8

M18×1.5

PG-11

17.9

14.6

10.6

15.5

17.5

10.7

5-10

M20×1.5

PG-13.5

20.2

16.2

10.3

17.8

17.9

13.3

6-12

M22×1.5

PG-16

21.3

18.3

11.2

18.5

20.5

14.3

10-14

M24×1.5

PG-19

24.7

20.5

11.4

18.6

21.8

15.5

12-15

M27×1.5

PG-21

26.9

21.8

11.6

18.7

23.1

16.7

13-18

M30×1.5

PG-24

29.8

25.0

12.1

28.3

24.1

19.2

15-22

M36×1.5

PG-29

35.1

29.8

12.4

22.6

24.8

24.8

18-25

M48×1.5

PG-36

44.7

37.1

12.6

25.1

26.1

30.7

22-32

M53×1.5

PG-42

50.4

43.3

17.3

25.9

30.5

35.6

30-38

M58×1.5

PG-48

56.1

48.2

20.9

28.1

31.8

41.4

34-44
