Material：Nylon 66, 94V-2 certificated by UL. Acid & erosion control,insulate well and not easy to aging、tensile strong.
Application temperature：-40℃ to 85℃
Installation temperature：-20℃ to 85℃
Color：Natural, Black,UV black, other colors are available as requested.

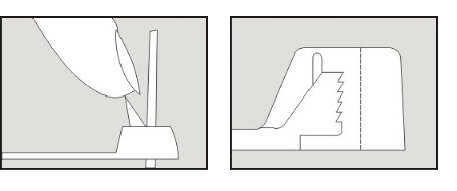

Feature： Can be released for repeated use

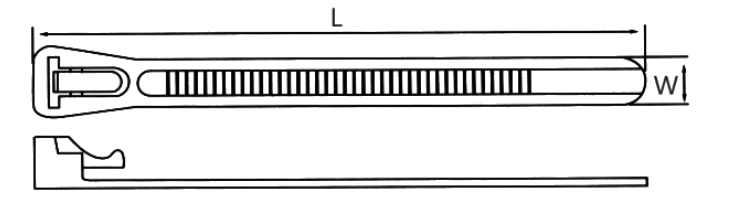

| Item.No. | L | W | MAX.Bundle dia.(mm) | Tensile Strength | ||
| Inch | mm | mm | lbs | kgs | ||
| ZJM-200RT | 8" | 200 | 7.5 | 45 | 50 | 20 |
| ZJM-250RT | 10" | 250 | 7.5 | 45 | 50 | 20 |
| ZJM-300RT | 12" | 300 | 7.5 | 45 | 50 | 20 |
| ZJM-350RT | 13 5/8" | 350 | 8.0 | 90 | 50 | 22 |
| ZJM-400RT | 15 3/4" | 400 | 8.0 | 105 | 50 | 22 |
| ZJM-450RT | 17 3/4" | 450 | 8.0 | 130 | 50 | 22 |
| ZJM-500RT | 19 11/16" | 500 | 8.0 | 150 | 65 | 30 |
| ZJM-550RT | 21 11/16" | 550 | 8.0 | 160 | 65 | 30 |
| ZJM-100RRT | 4" | 100 | 2.5 | 22 | 18 | 8 |
| ZJM-145RRT | 6" | 150 | 2.5 | 35 | 18 | 8 |
| ZJM-150RRT | 6" | 150 | 3.5 | 35 | 40 | 18 |
| ZJM-300RRT | 11 5/8" | 300 | 12.7 | 82 | 250 | 114 |
| ZJM-400RRT | 15 3/4" | 400 | 12.7 | 105 | 250 | 114 |
| ZJM-450RRT | 17 3/4" | 450 | 9.0 | 118 | 175 | 80 |
| ZJM-550RRT | 21 11/16" | 550 | 9.0 | 160 | 175 | 80 |
| ZJM-780RRT | 30 3/4" | 780 | 12.7 | 230 | 250 | 114 |
