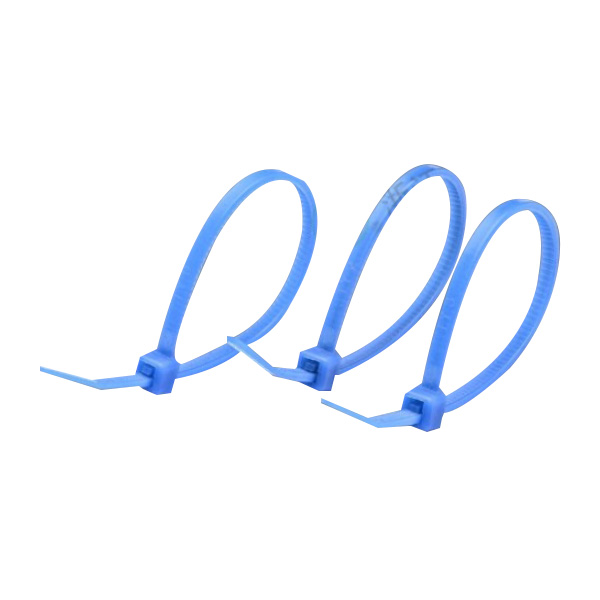

TEFLON CABLE TIE
TEFLON CABLE TIE
TEFLON CABLE TIE

TEFLON CABLE TIE

Inquiry
Description
Material: ETFE
Application: ETFE is superior resistance to chemical attack.Continuous operatingtemperatures up to 150℃ : one -piece construction for consistent performance andreliability.Internal serrations allowing for a positive hold.
Installation temperature:-30°C~+150°C.
Working temperature:-50°C~+200°C.
Max sustainable temperature for short time: +260°C.
Model specification
ITEM.No. L W(mm) BUNDLE DIA.(mm) Tensile Strength
lnch mm LBS KGS
ZJT-3*100 4.0'' 100 2.5 2-22 18 8
ZJT-4*150 6.0'' 150 3.6 3-35 40 18
ZJT-4*200 8.0'' 200 3.6 3-50 40 18
ZJT-5*200 8.0'' 200 4.8 3-50 50 22
ZJT-5*300 12'' 300 4.8 3-80 50 22
ZJT-5*370 14.6'' 370 4.8 3-98 50 22
ZJT-8*200 8.0'' 200 7.6 3-50 120 55
ZJT-8*300 12'' 300 7.6 4-80 120 55
ZJT-8*370 14.6'' 370 7.6 3-90 120 55
ZJT-8*430 17'' 430 7.6 4-105 120 55
