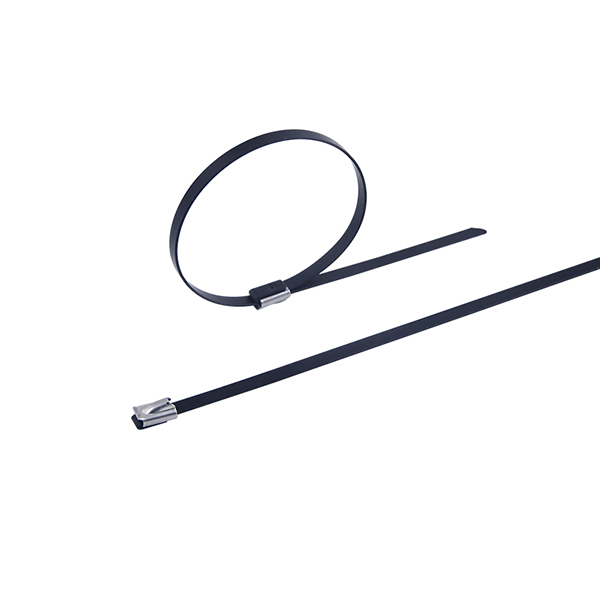

Stainless Steel Epoxy Coated Cable Ties-Ball Lock Type

Inquiry

Product Information

> Material: Stainless steel 201,304, 316, PVC coated; All length color are available;

> Characteristic: They have an unique hall locking with plastic jetting mechanism that alloweasily and quickly installed and not undone, high tensile strength; Non-flammability, selflocked ,easy-quick application, High resistance to acetic acid, alkali acid, sulphuric addcorrode...etc;

>0perating temperature:-40°C~85°C.

Technical parameters

Part No.	Approx. Length mm(inch)	Approx. Width mm(inch)	Max. Bundle Dia. mm(inch)	Min. loop Tensile Strength N(lbs)
ZJ-PL 4x150	150(5.9)	4.0(0.160)	37(1.46)	600(135)
ZJ-PL 4x200	200(7.87)		50(1.97)
ZJ-PL 4x250	250(9.84)		63(2.48)
ZJ-PL 4x300	300(11.8)		76(2.99)
ZJ-PL 4x350	350(13.78)		89(3.5)
ZJ-PL 4x400	400(15.75)		102(4.02)
ZJ-PL 4x450	450(17.72)		115(4.53)
ZJ-PL 4x500	500(19.69)		128(5.04)
ZJ-PL 4x550	550(21.65)		141(5.55)
ZJ-PL 4x600	600(23.62)		154(6.06)
ZJ-PL 4.6x150	150(5.9)	4.6(0.181)	37(1.46)	600(135)
ZJ-PL 4.6x200	200(7.87)		50(1.97)
ZJ-PL 4.6x250	250(9.84)		63(2.48)
ZJ-PL 4.6x300	300(11.8)		76(2.99)
ZJ-PL 4.6x350	350(13.78)		89(3.5)
ZJ-PL 4.6x400	400(15.75)		102(4.02)
ZJ-PL 4.6x450	450(17.72)		115(4.53)
ZJ-PL 4.6×500	500(19.69)		128(5.04)
ZJ-PL 4.6x550	550(21.65)		141(5.55)
ZJ-PL 4.6x600	600(23.62)		154(6.06)
ZJ-PL 7.9x150	150(5.9)	7.9(0.311)	37(1.46)	800(180)
ZJ-PL 7.9x200	200(7.87)		50(1.97)
ZJ-PL 7.9×250	250(9.84)		63(2.48)
ZJ-PL 7.9×300	300(11.8)		76(2.99)
ZJ-PL 7.9×350	350(13.78)		89(3.5)
ZJ-PL 7.9x400	400(15.75)		102(4.02)
ZJ-PL 7.9x450	450(17.72)		115(4.53)
ZJ-PL 7.9x500	500(19.69)		128(5.04)
ZJ-PL 7.9x550	550(21.65)		141(5.55)
ZJ-PL 7.9x600	600(23.62)		154(6.06)
ZJ-PL 7.9x650	650(25.59)		167(6.57)
ZJ-PL 7.9x700	700(27.56)		180(7.09)
ZJ-PL 7.9x750	750(29.53)		191(7.52)
ZJ-PL 7.9x800	800(31.5)		193(7.59)
