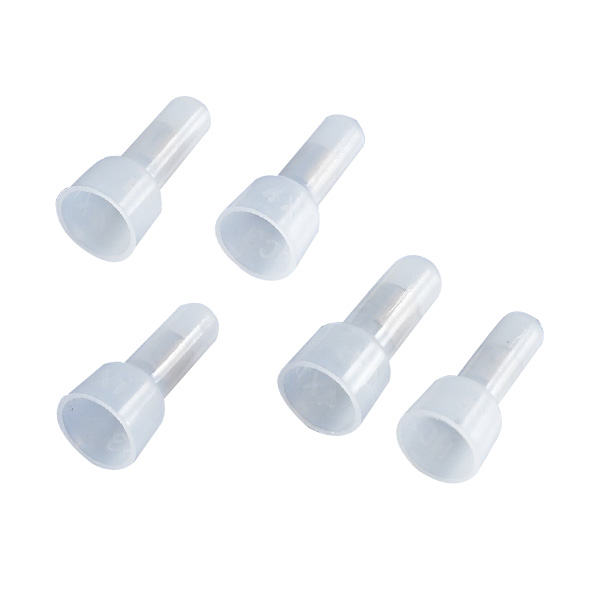

Material: The shell made from Nylon 66 conforming to UL94V-2with silver coated copper tube inside.
Usage: Remove the insulator on the ends of the wires,insert into theline-pressing cap after connecting and to confim the metal wire position is inside copper tube,then inpact with line-pressing clip.
Color: White(Natural)or black,Other colors available upon request.
|

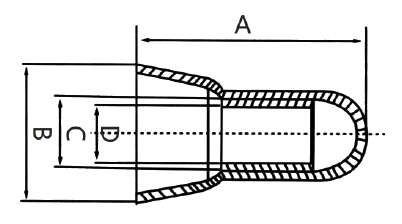

ITEM. No. |
A (mm) |
B( mm) |
Thread diameter incide C(mm) |
Brass tube diameterD(mm) |
Suitable wires |
|
|
ZJCE-φ3 |
18.0 |
9 |
3.6 |
2.8 |
1.25 |
22-16 |
|
ZJCE-φ4 |
21.0 |
9.5 |
3.9 |
3.0 |
2 |
16-14 |
|
ZJCE-φ5 |
22.5 |
10.5 |
4.8 |
4.0 |
5.5 |
12-10 |
|
ZJCE-φ6 |
24.0 |
12.0 |
5.6 |
4.8 |
8 |
8 |
|
∠JCE-φ8 |
25.5 |
14.0 |
7.5 |
6.0 |
13 |
6 |
|
ZJCE-φ10 |
29.5 |
15.5 |
9.3 |
7.8 |
16 |
|
