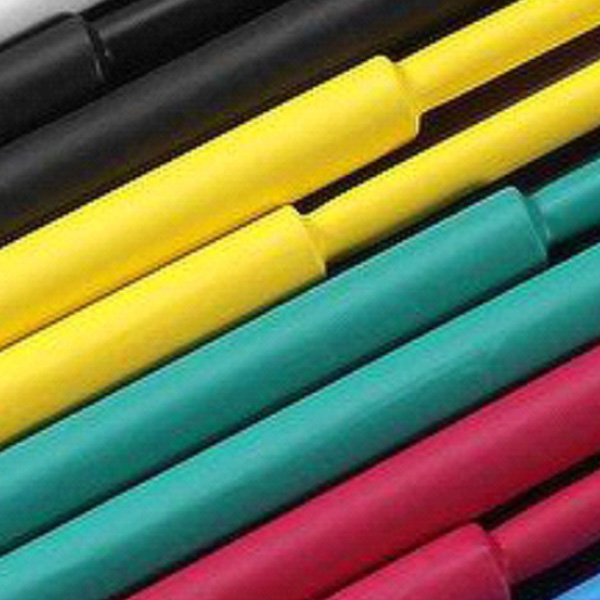

HEAT SHRINKABLE TUBINGS
HEAT SHRINKABLE TUBINGS
HEAT SHRINKABLE TUBINGS

HEAT SHRINKABLE TUBINGS

Inquiry
Model specification

Function:

1.wire coatandinsulation

2.make the joint of terminal block and wire insulated

3.divide the colors

4.water-proof

5.protection and insulation ofinsistors and electrical capacitors

Standard color: black,white,red,blue,yellow,green,brown,grey,orangeand purple



ITEM. No.

Before Contraction

After contraction

Packing

(d. mm)

Thickness

(d. mm)

Thickness

ZJH-1

1

0.2±0.05

0.5

0.4±0.05

400

ZJH-1.5

1.5

0.2±0.05

0.75

0.4±0.05

300

ZJH-2

2

0.25±0.05

1

0.45±0.1

200

ZJH-2.5

2.5

0.25±0.05

1.25

0.45±0.1

ZJH-3

3

0.25±0.05

1.5

0.45±0.1

ZJH-3.5

3.5

0.25±0.05

1.5

0.45±0.1

100

ZJH-4

4

0.25±0.05

1.75

0.45±0.1

ZJH-5

5

0.25±0.05

2

0.45±0.1

ZJH-6

6

0.35±0.05

2.5

0.55±0.1

ZJH-7

7

0.35±0.05

3

0.55±0.1

ZJH-8

8

0.35±0.05

3.5

0.55±0.1

ZJH-9

9

0.35±0.05

4

0.55±0.1

ZJH-10

10

0.35±0.05

4.5

0.55±0.1

ZJH-11

11

0.35±0.05

5

0.6±0.1

ZJH-12

12

0.35±0.05

5.5

0.6±0.1

ZJH-13

13

0.35±0.1

6

0.7±0.1

ZJH-14

14

0.35±0.1

6.5

0.7±0.1

ZJH-15

15

0.35±0.1

7

0.7±0.1

ZJH-16

16

0.35±0.1

7.5

0.7±0.1

ZJH-17

17

0.35±0.1

8

0.7±0.1

50

ZJH-18

18

0.35±0.1

8.5

0.7±0.1

ZJH-20

20

0.4±0.1

9

0.8±0.1

ZJH-22

22

0.5±0.1

10

0.9±0.1

ZJH-25

25

0.5±0.1

11

0.9±0.1

ZJH-28

28

0.5±0.1

12.5

0.9±0.1

ZJH-30

30

0.5±0.1

14

0.9±0.1

25

ZJH-35

35

0.5±0.1

15

1.0±0.2

ZJH-40

40

0.5±0.1

17.5

1.0±0.2

ZJH-50

50

0.5±0.1

20

1.0±0.2

ZJH-60

60

0.5±0.1

25

1.0±0.2

ZJH-70

70

0.6±0.1

30

1.2±0.2

ZJH-80

80

0.6±0.1

35

1.2±0.2

ZJH-90

90

0.6±0.1

40

1.2±0.2

ZJH-100

100

0.6±0.1

45

1.2±0.2

ZJH-120

120

0.7±0.1

50

1.3±0.2
